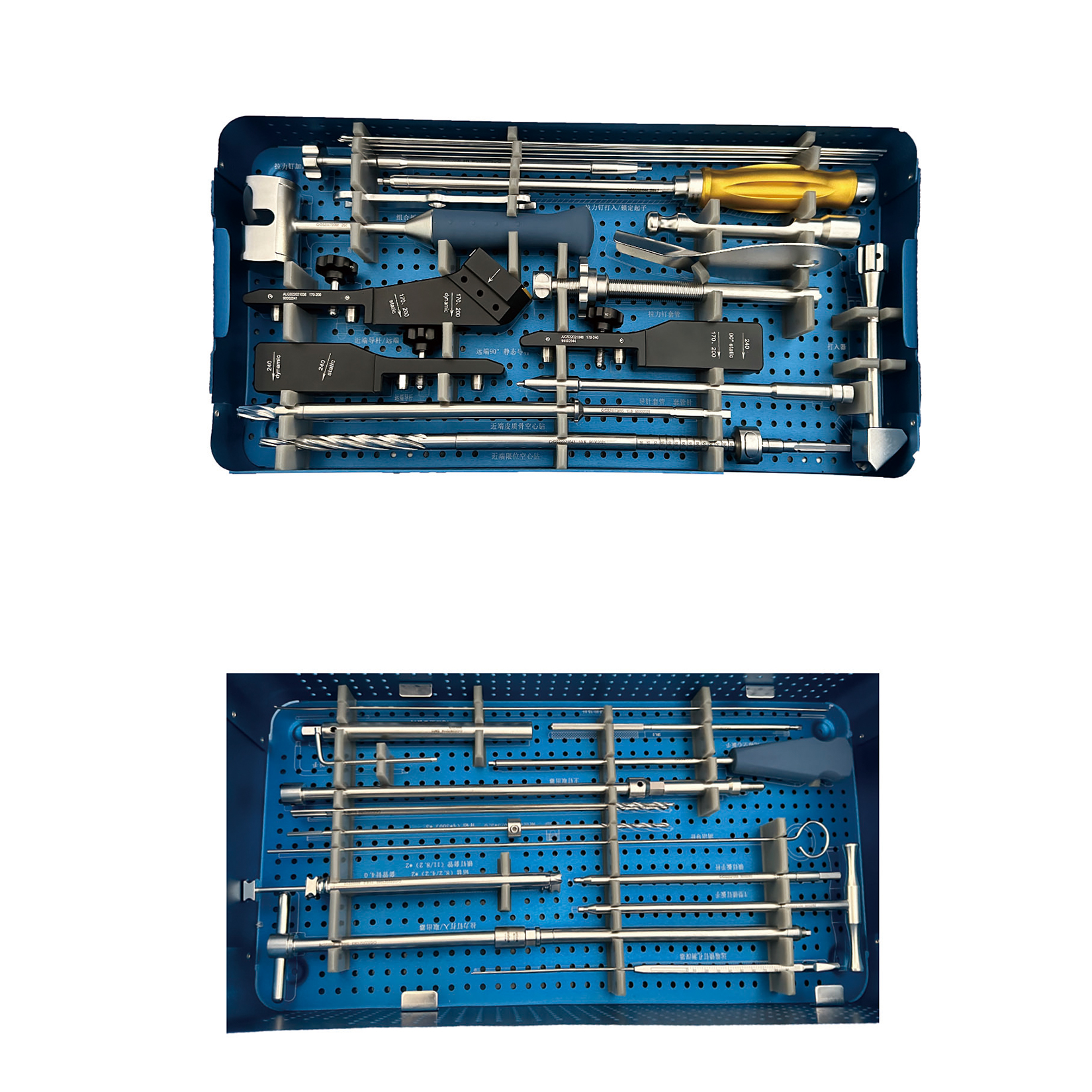

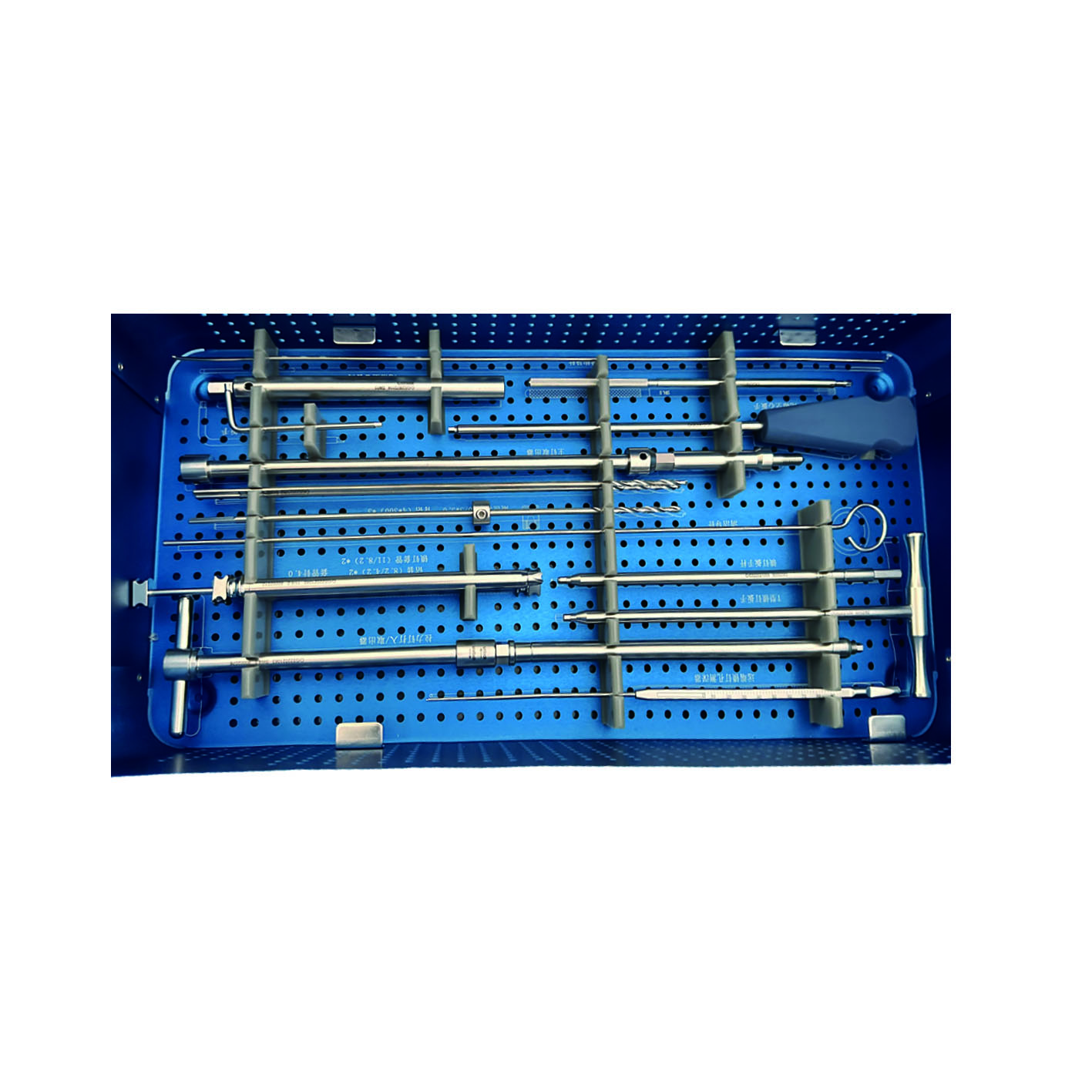

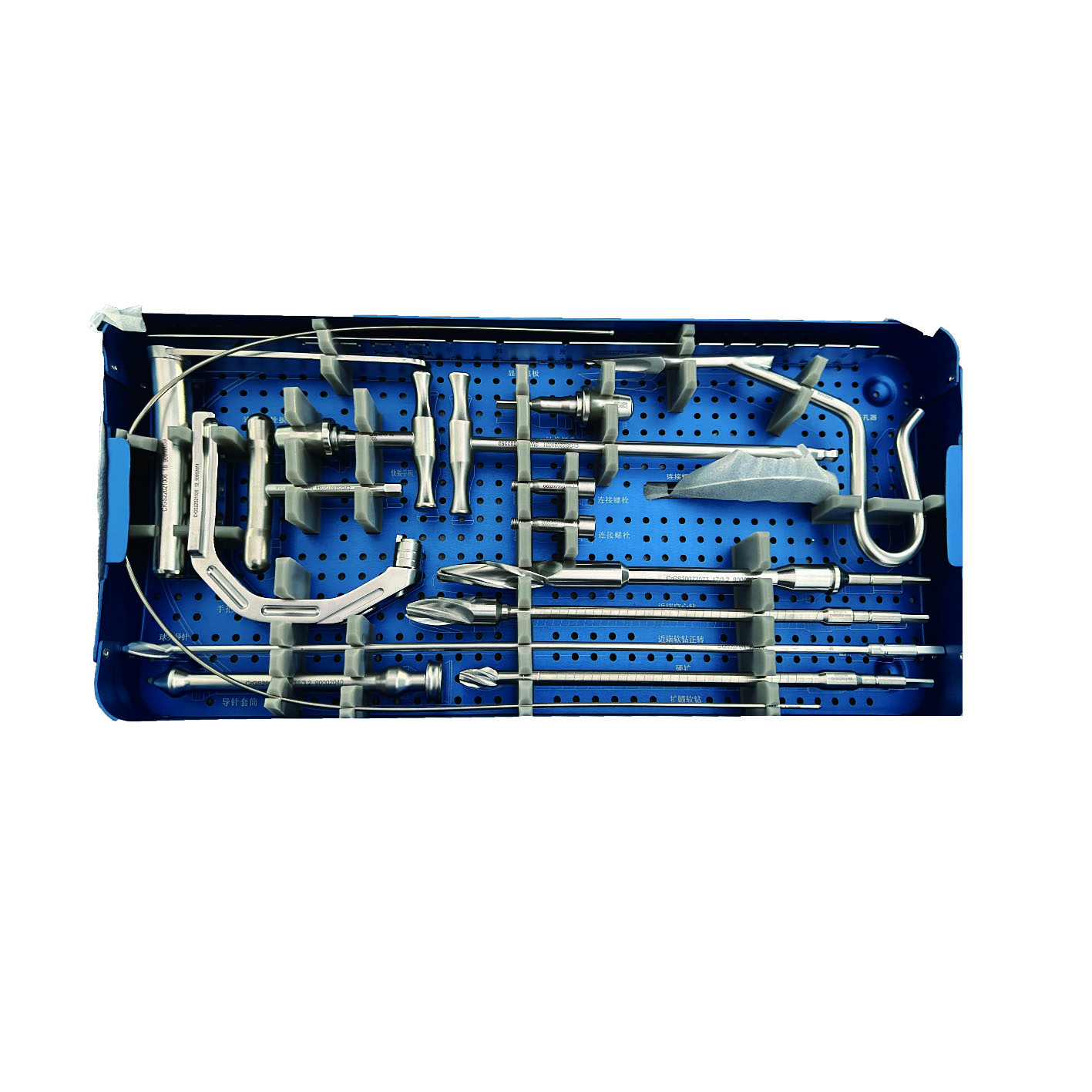

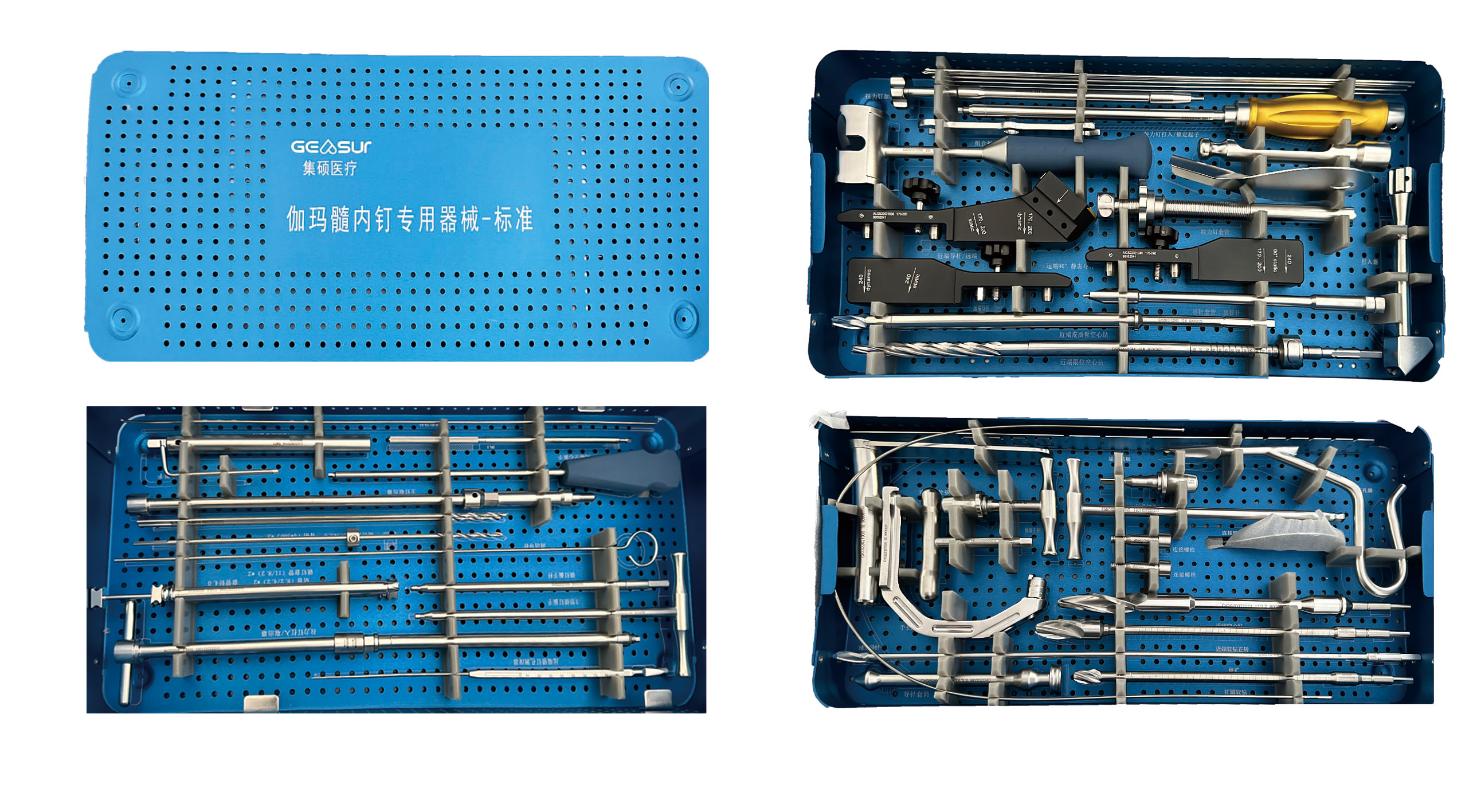

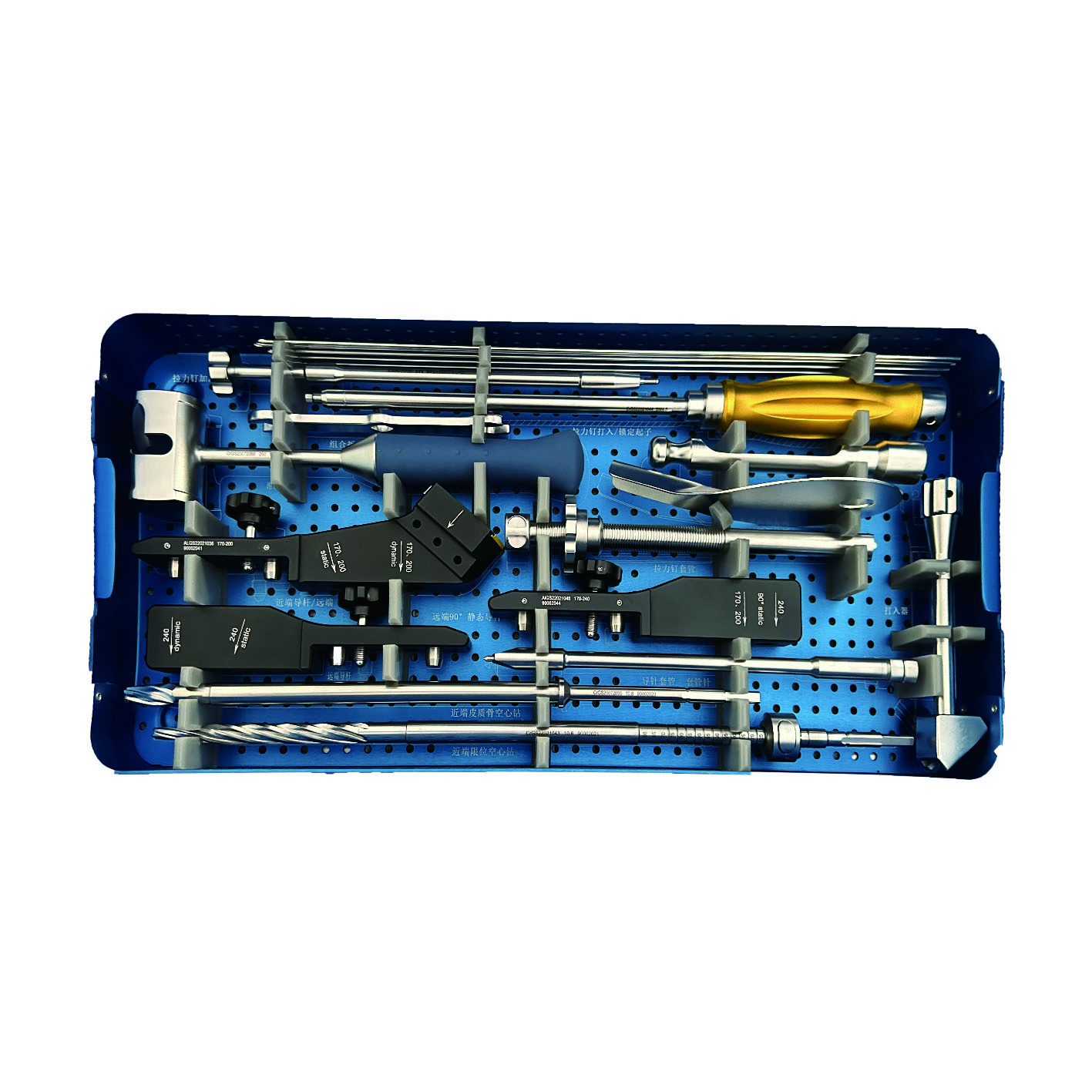

| No. | Part Name | Specification | Size | Qty | Coding | Drawing Number |
|---|---|---|---|---|---|---|
| 1 | Radiographic Ruler | Development template | 9-12 | 1 | 90002201 | GA3X01 |
| 2 | Guide Wire 3.2 mm | Thread guide pin | 3.2×400 | 5 | 90002003 | GA1X03 |
| 3 | Hand Reamer | Hard expansion | 9 | 1 | 90002025 | GA1X25 |
| 4 | Flexible Ream Shaft | Soft expansion tool bar | 8.5-14 | 1 | 90002204 | GA3X0500 |
| 5 | Opening Drill Bit, cannulated | Proximal Hollow Drill | 14 | 1 | 90002203 | GA3X04 |
| 6 | Protection Sleeve / Handle | Inlet guide tube / Channel handle | \ | 2 | 90002601/02 | GA8X01/02 |
| 7 | Gripper | Guide pin holder | 117 | 1 | 90002050 | GA1X4100 |
| 8 | Connection Screw, cannulated | Connecting bolt | M8×0.75 | 2 | 90002218 | GA3X09 |
| 9 | Rod Pusher with Hexagonal Screwdriver | Ball handle wrench | SW6.5 | 1 | 90002217 | GA3X0800 |
| 10 | Insertion Handle for Nail | Handle | \ | 1 | 90002219 | GA3X10 |
| 11 | Multihole Drill Sleeve | Cellular locator | 17/3.2 | 1 | 90002603 | GA8X0300 |
| 12 | Quick coupling / T-Handle | Adapter / handle | 85/92 | 2 | 90002056/55 | GA1X47/46 |
| 14 | Reduction Instrument | Reset rod | 7 | 1 | 90002016 | GA1X1600 |
| 15 | Reamer Head Set | Soft expansion head (8.5-13mm) | Various | 10 | 90002205-14 | GA3X06/07 |
| 16 | Awl, cannulated | Hollow hole opener | 4.2 | 1 | 90002005 | GA1X0500 |
| 17 | Drill Bit Sleeve / Trocar | Outer casing / Trocar | 12-8/4.3 | 5 | 90002227-29 | GA3X18-20 |
| 18 | Screwdriver, hexagonal | Universal wrench | SW6.5 | 1 | 90002106 | GA2X0600 |
| 19 | Connector | Driver | SW11/M8 | 1 | 90002202 | GA3X0200 |
| 20 | Aiming Arm | Proximal sight | \ | 1 | 90002220 | GA3X1100 |
| 21 | Guild Pin Sleeve / Trocar | Sleeve / Trocar 3.2 | 8.5/3.2 | 5 | 90002221-23 | GA3X12-14 |
| 22 | Drill Bit, 4.3 Long | Long bone drill | 4.3 | 2 | 90002231 | GA3X22 |
| 23 | Hammer Guide Shaft | Sliding hammer rod | M12/10 | 1 | 90002156 | GA2X56 |
| 24 | Depth Gauge | Lock nail sounder | 20-100 | 1 | 90002230 | GA3X2100 |
| 25 | Direct Measuring Device | Guide pin sounder | 40-130 | 1 | 90002224 | GA3X15 |
| 27 | Sliding Hammer | Sliding hammer | 260 | 1 | 90002073 | GA1X6400 |
| 29 | Screwdriver Stardrive, T25 | Wrench / Shaft T25 | T25 | 2 | 90002232/33 | GA3X23/24 |
| 31 | Ream / Drill Bit 6.0 | Flat drill / Bone drill | 6.0 | 2 | 90002240/41 | GA3X31/32 |
| 33 | Reamer 3.4/6.0 | Step drill | \ | 1 | 90002242 | GA3X33 |
| 35 | Drill Bit, 4.3 | Bone Drill | 150 | 2 | 90002148 | GA2X48 |
| 38 | Combination Wrench | Open-end wrench | SW11 | 1 | 90002102 | GA2X02 |
| 42 | L-space, adjustable | Adjustable positioning rod | 9-12 | 1 | 90002243 | GA3X3400 |
| 48 | Aiming Beam for Locking | Guide rod 340-420 | 340-420 | 1 | 90002236 | GA3X2700 |
| 54 | Aiming Arm | Remote / Dynamic sight | \ | 2 | 90002254/55 | GA3X45/46 |
| 58 | Screwdriver Stardrive | End cap wrench | SW4 | 1 | 90002064 | GA1X5500 |
